Intelligent and completely reinvented: Fendt ex C.

The rakes Fend FormerWith a work width between 6.90 me 10.00 m, they are mainly used in European farms with their own mechanization. The series was now completely redesigned. The functions already consecrated, such as the patented system patented or the double oscillating arm of the suspension of the rotor, are completed, for the first time, in this segment, by numerous functions compatible with IsoBus. With functions like Fendt Flexhigh (Through Proconnect), MyMemory or SecationControl, the German company responds to the various needs of farms, offering both basic models: two Rods and intelligent versions, with IsoBus system, for advanced requirements.

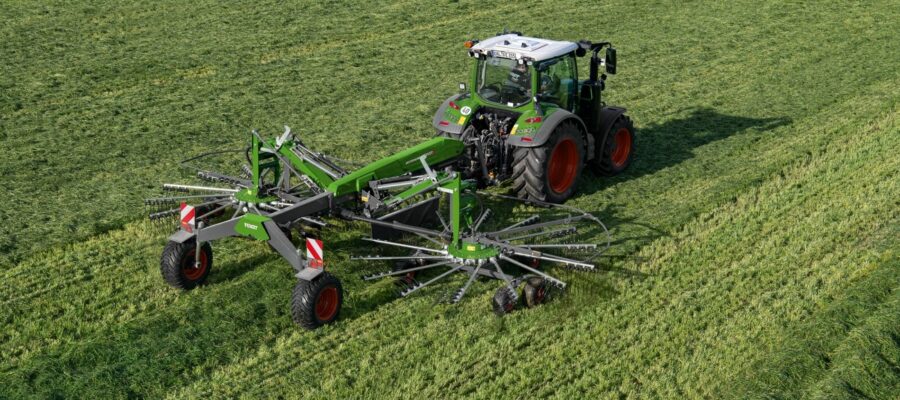

It would be Fendt Forms CWith two rotors, which form a central furrow, it includes six models with a work width between 6.90 and 10 meters. High working speed, to which is added the high quality of the feed, various equipment options and numerous optional Isobus functions are defining the characteristics for these models. The range covers both standard models, for users who do not need IsoBus functionality, as well as intelligent models, intended for customers with high requirements.

The name of the former 920 C Pro of Fendt is composed as follows: 920 represents the maximum width of the work of 9.20 meters, C indicates «Central Train formation», e Pro It refers to the models equipped with IsoBus.

General presentation of the Fendt ex models

The IsoBus system of the former Fendt rake that forms a central furrow is completely integrated into the tractor terminal. This allows the rapid allocation of the functions directly from the tractor jystick. Through the IsoBus system, it is possible to set, from the tractor cabin, all the important parameters: the width of the wake, the height of the rake, Fendt Flexhigh etc.

The IsoBus system for the Pro models allows, in the standard configuration, the single lifting of the rotors. For standard models, this individual lifting function, electro -hydraulic acting, can be purchased optionally. The advantage of individual lifting is the high precision, also on the inclined surfaces, as well as on the average ends, preventing double processing. This functionality is completed by the adjustable lifting at the average end. The height of the lifting of the rotors on the end of the row can be regulated in five phases, from the terminal.

Therefore, Grebla Fendt ex who forms a central furrow guarantees maximum flexibility and greater efficiency for modern agricultural works.

The control function of the section for two -root rakes that form a central furrow

For the first time in this segment, the function Control of the IsoBus section It is optionally available for former Pro Fendt models. Section control It detects the areas already worked and automatically raises the rotor when a passage on areas such as the ordinary ends that have already been processed. This contributes to the reduction of impurities and wear, facilitates the operator's task and increases the general efficiency of the machine.

IsoBus for Fendt Ex with Fendt Proconnect

The Single System Fendt Proconnect IsoBusKnown from the first Fendt series with four rotors, it is now available for the first time and for two rakes. Fendt Proconnect Includes functions Fendt Flexhigh AND Mymemoryspecially developed for this type of agricultural equipment, guaranteeing an efficient and personalized operation.

Adjust the height of the high -speed rake

When the car is stationed, the rake teeth are completely raised. This intelligent control protects the layer of grass, reduces impurities and improves the quality of the feed. The optimization of the evaluation height in each situation also contributes to reducing the wear of the teeth, thus increasing the duration and efficiency of the machine.

Store settings Reduce configuration times

Integrated management system Mymemory of the settings of the rake shops such as the width of the work, the width of the furrow and the height of the rake. Simply by pressing a button, the machine moves to the most compact transport position after completion of the works. At the beginning of new works, the previously saved settings are activated by a single order and the machine automatically returns to the latest configurations. This system reduces operational errors and significantly reduces the time required for configuration.

Easy in operation

Together with a tractor compatible with IsoBus, all functions can be ordered by the joystick, by the tractor terminal. The user's interface was fully optimized for Fingertoneoffering a simple and easy to understand display, which allows the operating functions of the machine.

Protects soil and maneuverability

The precise regulation and control of the components for monitoring the soil outline protect the layer of grass and prevents impurities. Grebla Fendt ex has numerous functions that improve the monitoring of the soil outline. Well -known functions such as the effect of Jet And the double oscillating arm for the cardan suspension of the rotor contributes to obtaining a high quality feed. The longitudinal and transversal inclination of the rotor frame can be continuously adjusted.

A recent innovation is the river system in parallel. Due to a complex kinetics, both rotors are raised parallel to the ground and bend only after a certain height is reached for the ground. When the rotors are lowered, the command is reversed, preventing the teeth of the rake about entering the ground and thus avoiding the contamination of the nutrition.

The large tires together with the damping system on the lifting arms guarantee soil protection. The standard amortization system by the arches on the lifting of weapons transfers part of the weight of the rotors to the main frame, causing the adaptation of the rotors to the irregular ground.
